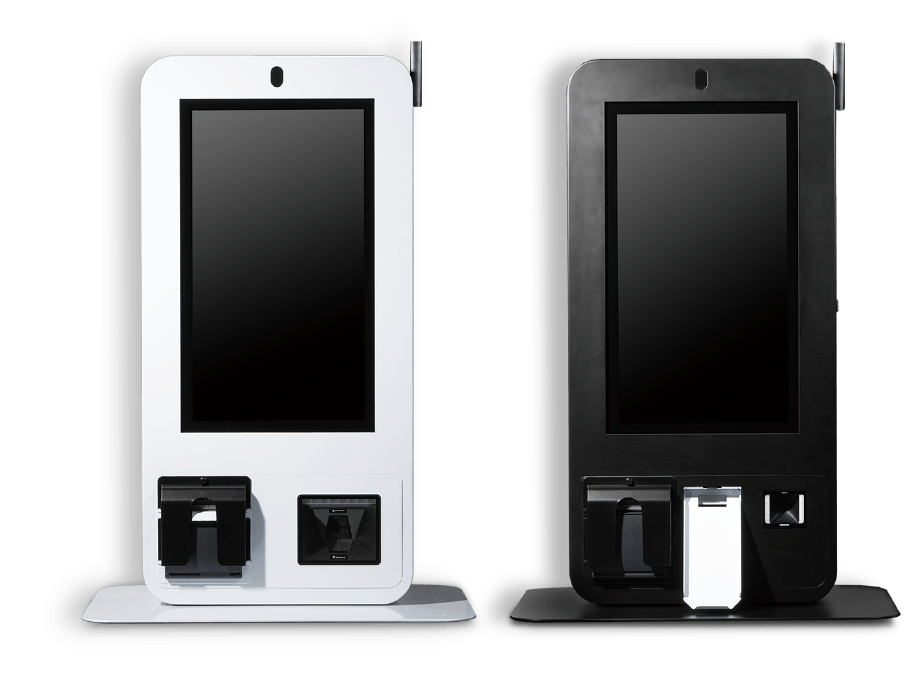

21.5-inch
Countertop Kiosk
KB-1X21

ENHANCING EVERY BITE WITH SMARTER TECH

Inquiry E-Brochure

Your Space. Your Setup.

Your Self-Service Solution.

Compatible with a range of front panel accessories, allowing flexible

configuration based on usage requirements.

Contactless
Payment

Dual
Speakers

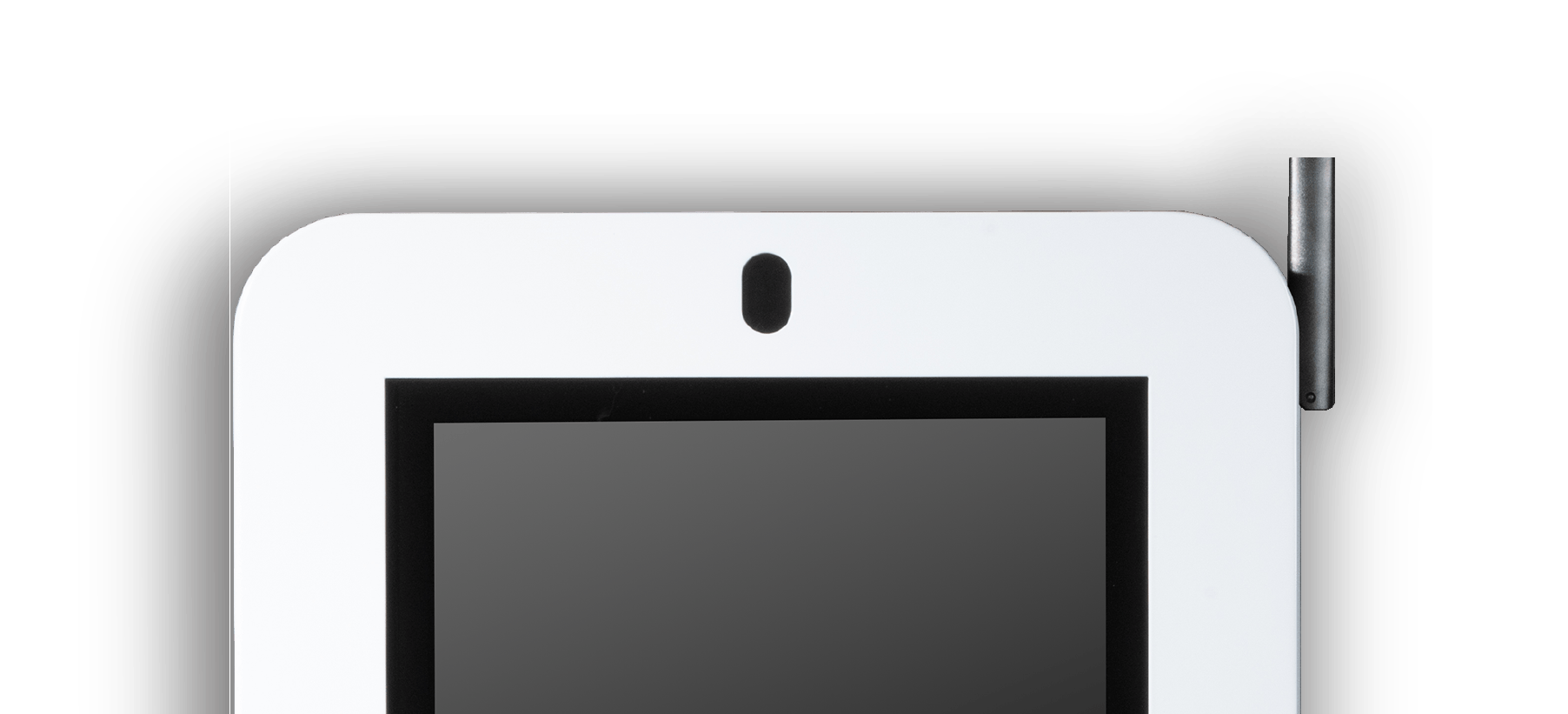

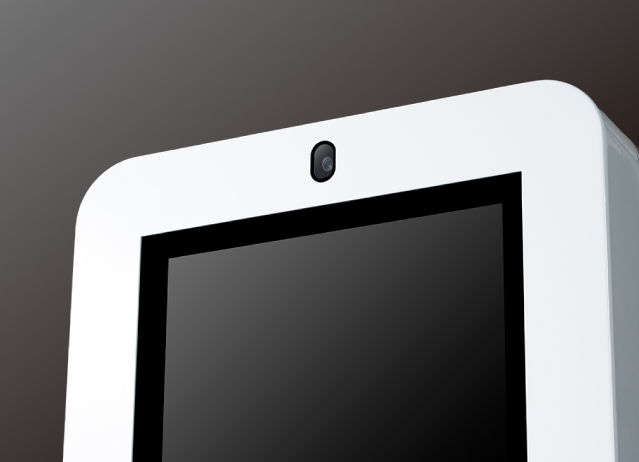

Built-in
Camera

Bright LCD®
Option

Speed Meets Simplicity

Versatile Self-Service Kiosk for Dynamic Environments

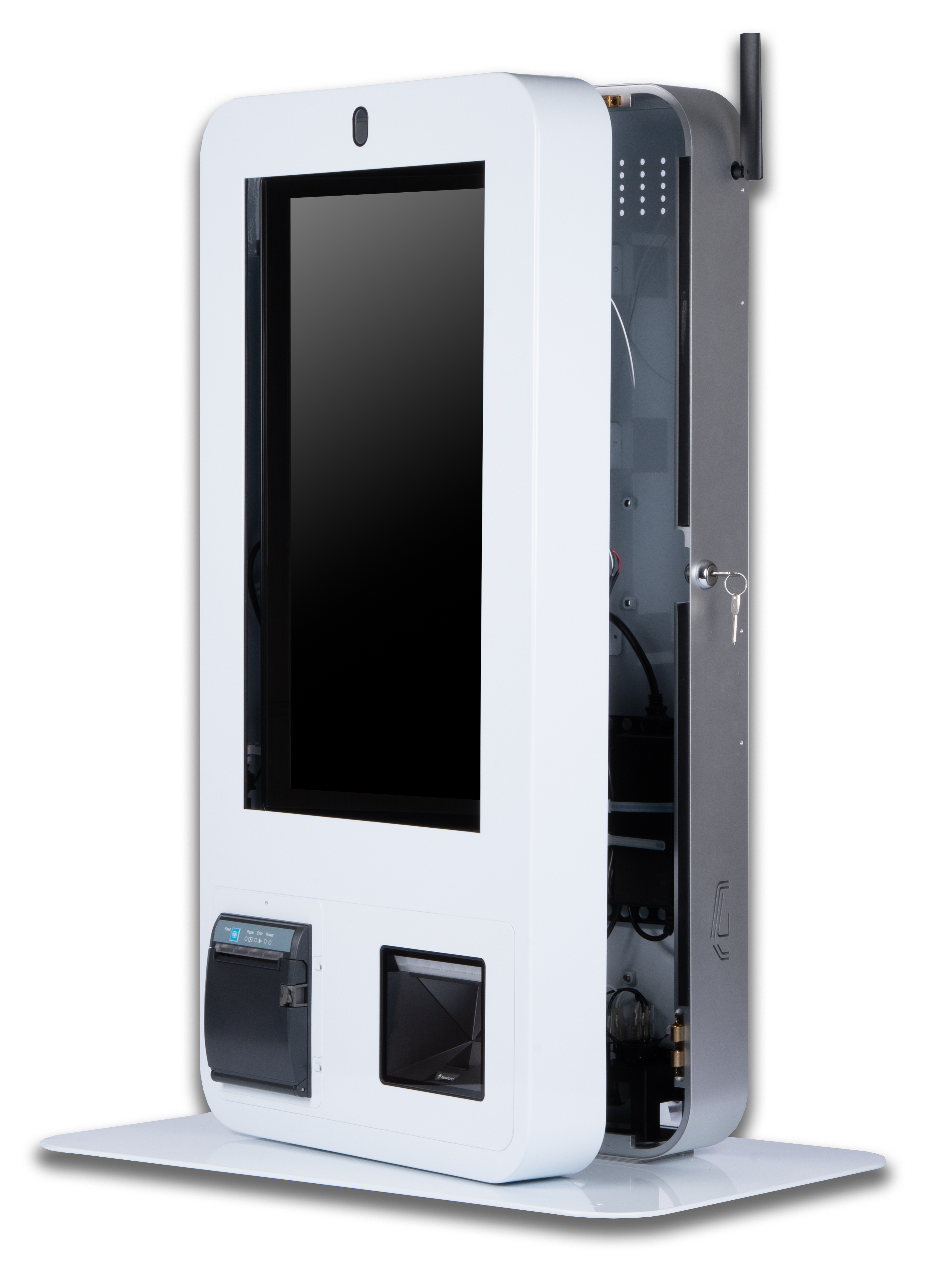

The KB-1X21 Series is designed to meet the growing demand for fast, efficient, and user-friendly self-service solutions. Whether in cinemas, supermarkets, or hospitality venues, this all-in-one kiosk delivers smooth and reliable performance to enhance customer experiences. From ticketing and product scanning to order processing, KB-1X21 streamlines every interaction with speed and precision.

Redefine Customer Interaction

Brilliant 21.5" Touchscreen with Exceptional Visibility

Equipped with a 21.5-inch Full HD touchscreen featuring up to 500 nits of brightness, the KB-1X21 ensures clear and vibrant visuals even under bright lighting. Its intuitive touch interface makes navigation simple and responsive, reducing wait times and improving service flow across all self-service scenarios.

Smart. Swift. Seamless

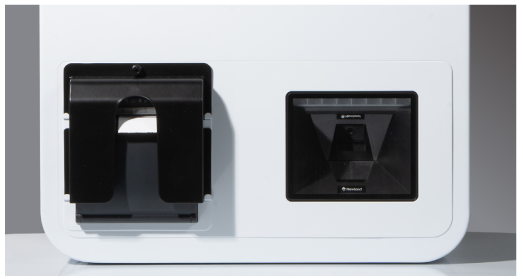

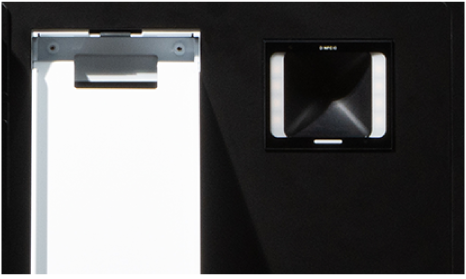

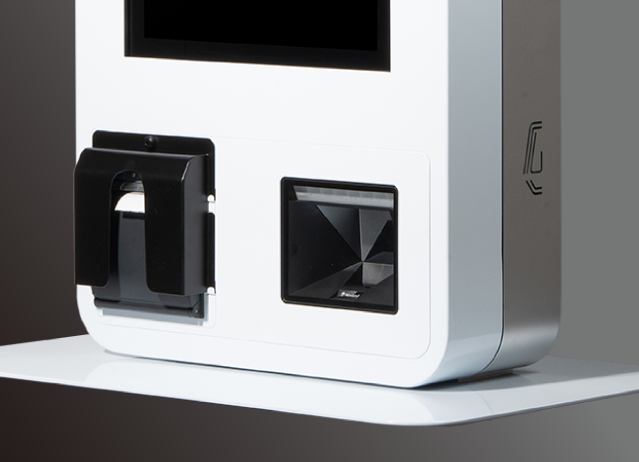

Integrated Solutions with Built-in Printer and Scanner

KB-1X21 comes ready with a built-in thermal printer and QR code scanner, supporting immediate ticketing, receipt printing, and digital transactions. Combined with powerful processing capabilities, it efficiently handles multiple tasks simultaneously, keeping queues moving and operations running smoothly during peak periods.

Faster Service Starts Here

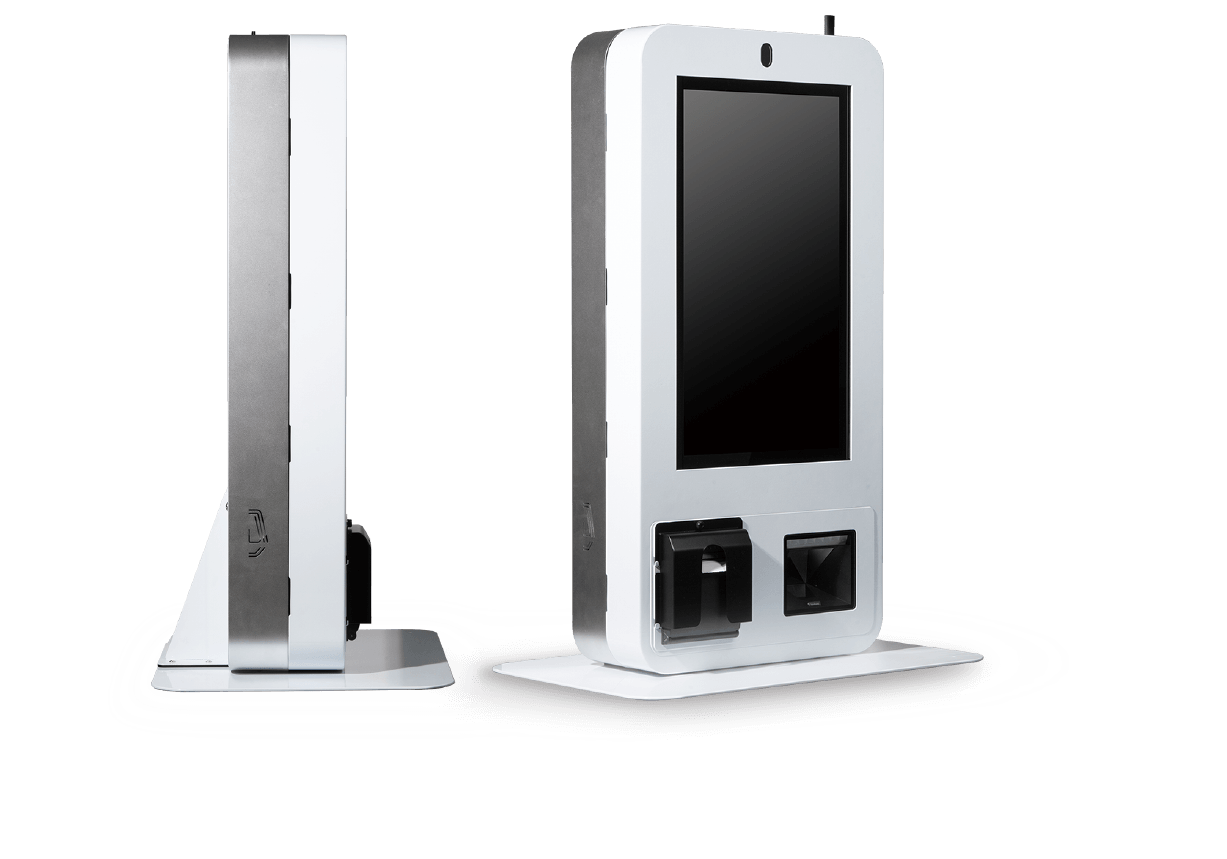

Flexible Installation and Customizable Add-ons

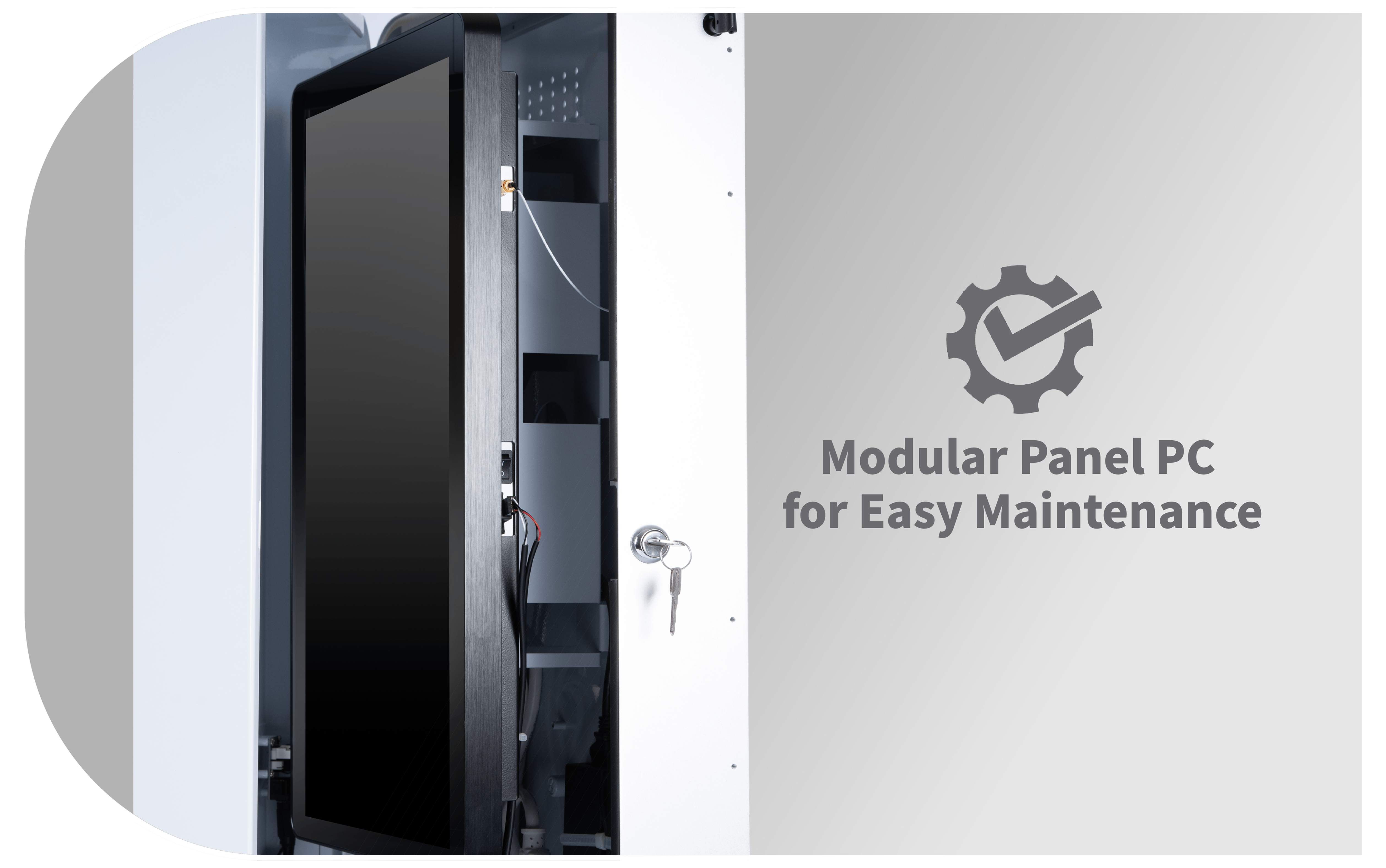

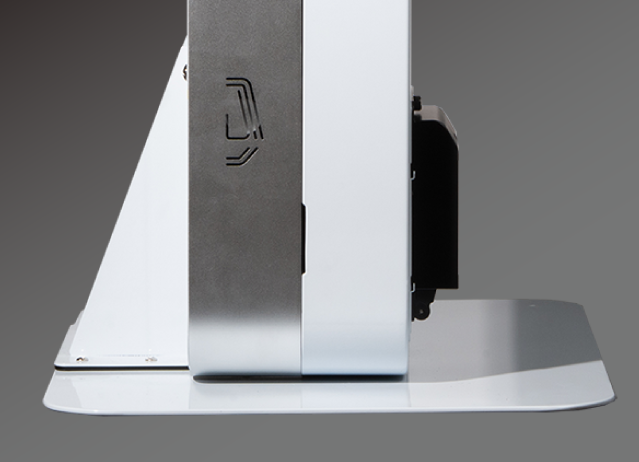

Designed with adaptability in mind, the KB-1X21 offers multiple mounting options-wall-mounted, countertop, or floor-standing with a pedestal-to fit seamlessly into any space. Additionally, its modular architecture allows for easy customization with essential add-ons such as barcode scanners, EMV payment devices, NFC readers, and more to meet diverse business requirements.

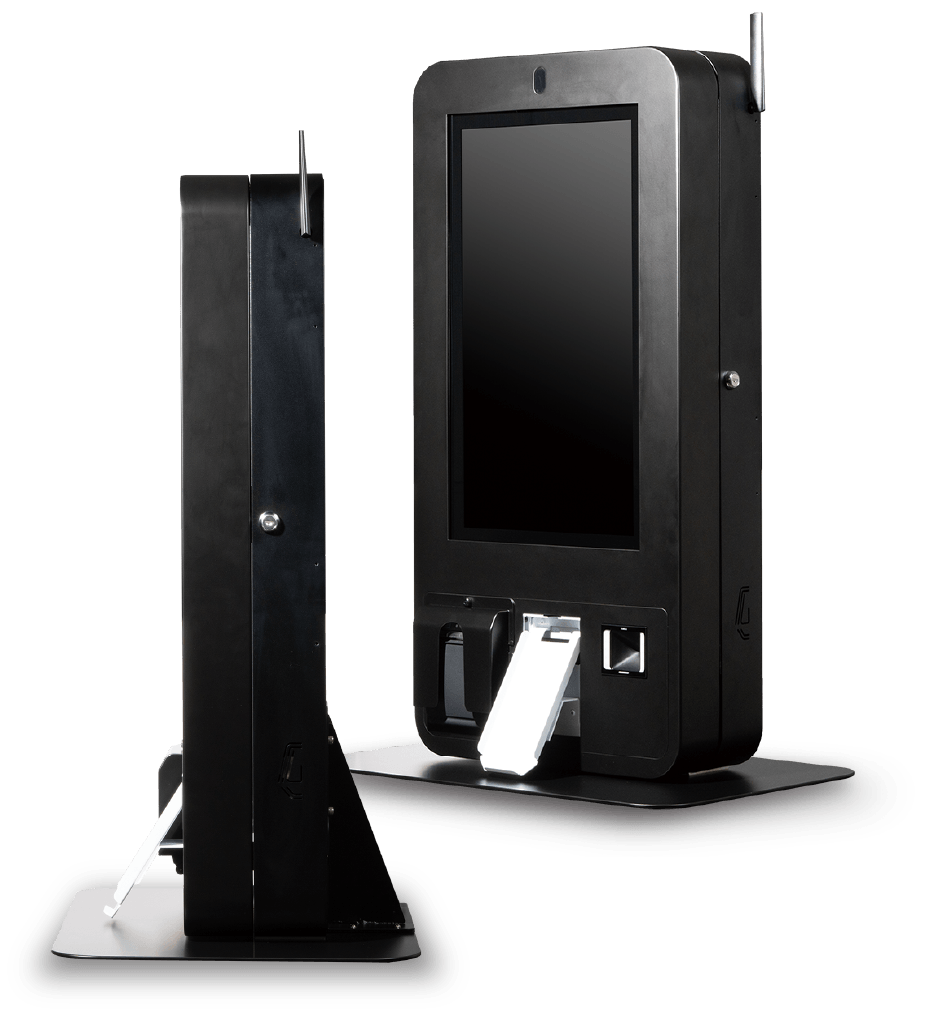

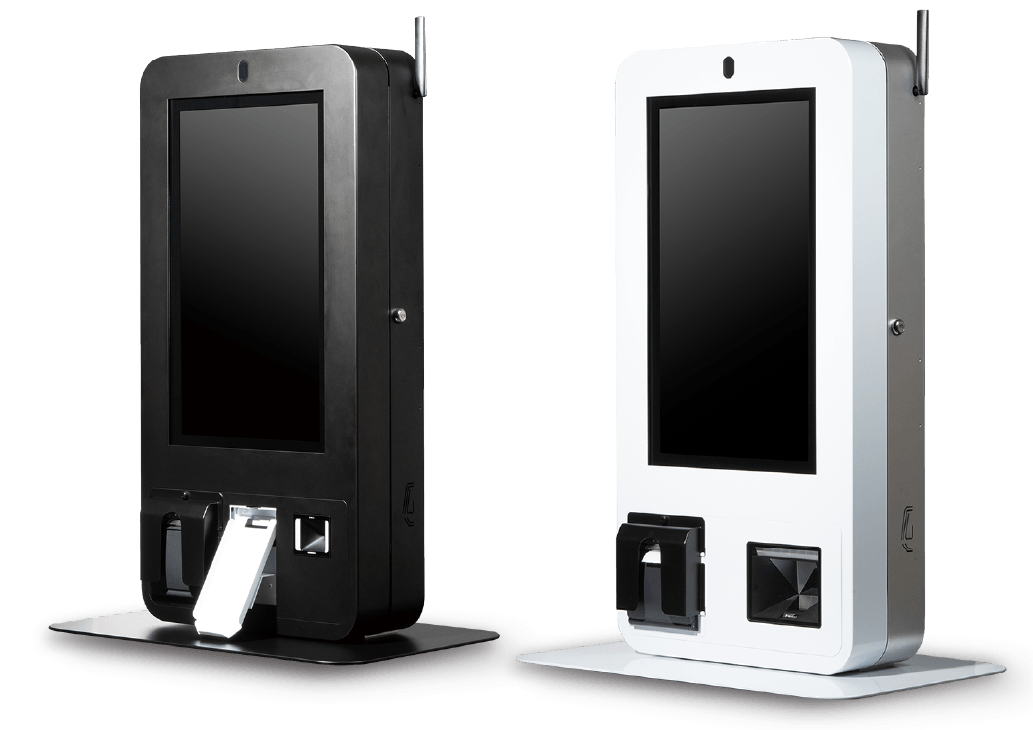

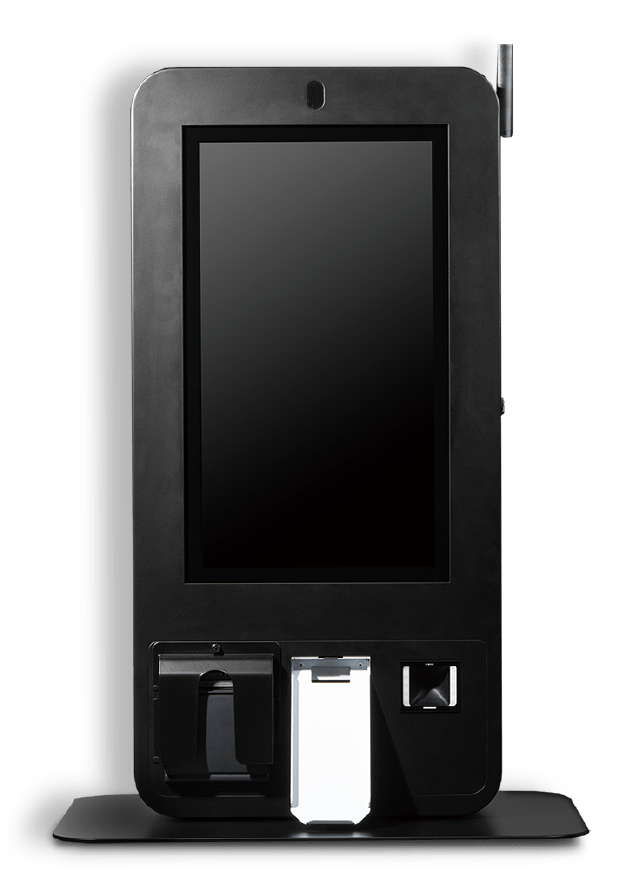

Photo Gallery

Specifications

Choose Model

KB-1121A_1621N_1821P

Model Name		KB-1121A	KB-1621N	KB-1821P
Core Logic	Processor	ARM Rockchip RK3568 Quad-core Cortex-A55 2.0GHz	Intel® N97 (Alder Lake) 6M Cache, Max. 3.6 GHz	Intel® Core™ i3-1215U (Alder Lake) 10M Cache, Max. 4.4 GHz Intel® Core™ i5-1235U (Alder Lake) 12M Cache, Max. 4.4 GHz Intel® Core™ i7-1255U (Alder Lake) 12M Cache, Max. 4.7 GHz
	Memory	Onboard 4GB LPDDR4 3200MHz	1 x 260 pin DDR4 SO-DIMM (3200MTs, up to 16GB)	2 x 260 pin DDR4 SO-DIMM (3200MTs, up to 64GB)
	Storage	Onboard 32GB eMMC 5.1 1 x TF Card Slot	1 x M.2 SSD (PCIe3.0 x 4 NVMe / SATA)	1 x M.2 SSD (PCIe4.0 x 4 NVMe / SATA)
LCD Panel	Panel Size	21.5-inch AHVA LED Panel
	Resolution	1920 (W) RGB x 1080 (H)
	Brightness	250nits/500nits
	View Angle	89° / 89° / 89° / 89°
Touch Panel	Modular Parts	True-Flat PCAP Touch (G+G)

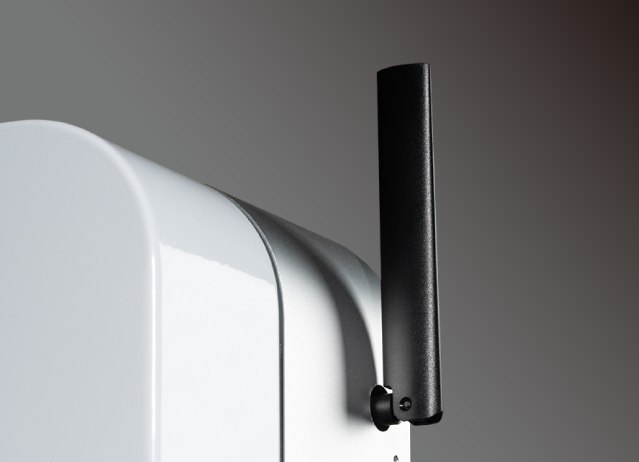

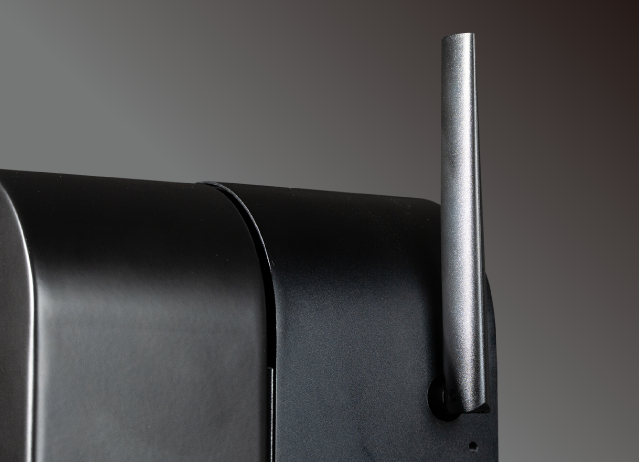

RF Communication	Wi-Fi / 4G LTE	Wi-Fi IEEE 802.11 a/b/g/n/ac	Option
Speaker	Internal Speaker	2 x 5W Speakers
I/O Expansion
Internal I/O	USB	5 x USB 2.0 Type A 1 x USB 3.0 Type A 1 x USB 2.0 Micro (OTG) (5 of them USB for camera/2D/printer/outlet x2)	1 x USB 3.2 Type A 1 x USB 3.2 Type C (w/ QC) 5 x USB 2.0 Type A 1 x USB 3.0 Type A (5 of them USB for camera/2D/printer/outlet x2)	1 x USB 3.2 Type A 1 x USB 3.0 Type A 1 x USB 2.0 Micro (OTG) 1 x USB 3.0 Type A 2 x USB 2.0 Type A (option) (5 of them USB for camera/2D/printer/outlet x2)
	COM	1 x COM (DB9, Tx/Rx), w/ 5V 1 x COM (DB9, Tx/Rx), w/ 5V/3.3V by resistor 1 x COM (DB9, Tx/Rx), w/ 5V/3.3V by resistor (option)	2 x COM (RJ45), w/ RI/5V/12V by BIOS 2 x COM (DB9), w/ RI/5V/12V by jumper (option)
	HDMI	1 x HDMI Port
	Audio	1 x Line-out/MIC-in
	Cash Drawer	N/A	1 x RJ11 Port supports 2 cash drawer w/ 12V/24V by jumper
	DC Power Out	N/A	1 x DC 12V Power Out (DC 2.1mm)
	Power Switch	1 x SPST-NO Momentary Rocker Switch
	Extension Cord	4 x US(2P+E) outlet Second or Other AC Plug Extension Cord (option)
	Extra Card Slot	1 x TF Card Slot 1 x Standard SIM Card Slot	N/A
External I/O	USB	2 x USB 2.0 type A
	LAN	1 x RJ45 Ethernet (Host) 1 x RJ45 Ethernet (option : EMV Payment)
	Power Cord Socket	1 x AC Male Power Socket
	Power Switch	1 x Power Switch Button
Mechanical & Environmental
Physical Characteristics	Surface Color Plan	Standard or Customizable by project
	Brand Logo	Customizable by project
	Dimension (W x H x D mm)	Main System Only : 841 x 422 x 156 mm Desktop Standing : 855 x 600 x 400 mm Floor Standing : 1591 x 570 x 500 mm
	Weight (N.W / KG)	Main System Only : 30KG Body + Desktop StandingDesktop Standing : 41KG Body + Desktop StandingFloor Standing : 69KG
Certification		FCC/CE/LVD
Operation System		Android 11	Windows 10/11
Environment	Operation Condition	0°C to +45°C / 20 to 80% without condensation
Environment	Storage Condition	-5°C to +55°C / 20 to 85% without condensation
Optional Accessories
Internal Camera		5M-Pixel AF Full HD Camera
Thermal Printer		2" or 3" standalone thermal printer with cutter 203 dpi and Max. 180 mm/s supported

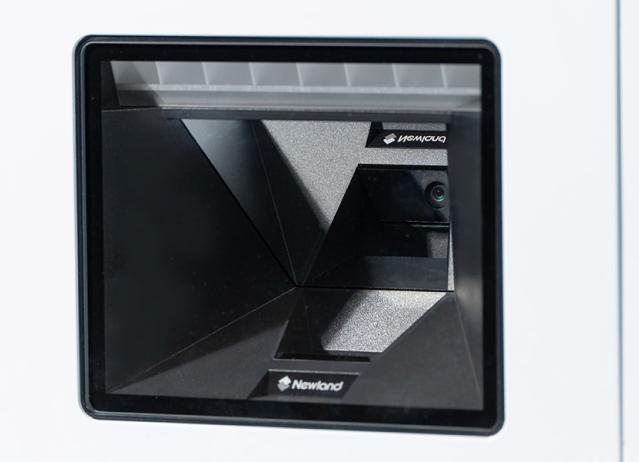

Mini QR Code Scanner		Fixed mount barcode scanner, 1280 x 1088 CMOS, White LED Scan modes : Sense mode, Continuous mode Optimized to read barcode from a mobile phone screen
MSR/IC Card Combo Reader		Based on customer requirements
NFC/RFID Reader		Based on customer requirements

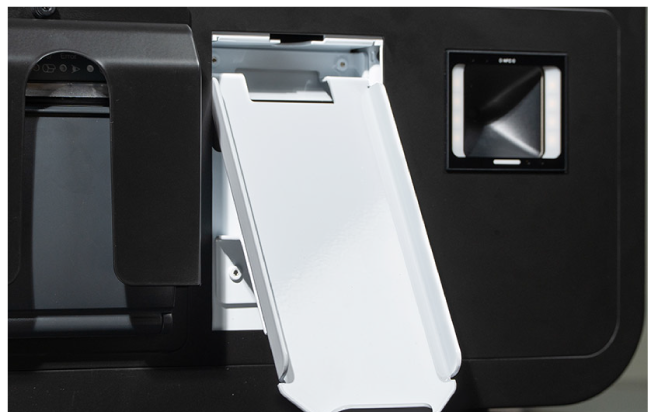

EMV Payment Device Bracket		Based on customer requirements
More Optional		4G LTE Module (Mini-PCIe) Wall Mount Bracket Kit Multiple Holder (Supermarket Version) Ticketing Printer	4G LTE Module (Mini-PCIe) Wi-Fi IEEE 802.11 a/b/g/n/ac/ax (M.2 E Key)(Mini-PCIe) 4G LTE Module (Mini-PCIe) Wall Mount Bracket Kit Multiple Holder (Supermarket Version) Ticketing Printer
